Professional razor barbed wire manufacturer
8 Years
| Ask Lasest Price | |
| Brand Name : | SUNSI |
| Model Number : | SI-CRW04 |
| Certification : | ISO9001, CE |
| Price : | US $ 10-30 per roll |
| Payment Terms : | T/T, L/C, Western Union, D/A, D/P |
| Supply Ability : | 100000 rolls per week |
| Delivery Time : | 15-30 working days after advanced payment |
Concertina Razor Wire PVC Coated Barbed Wire Diameter 18" Coil
Product Description
Concertina PVC coated razor barbed wire is reprocessing with anti-rust treatment such as spray painting on the base of galvanized iron wire or black annealed iron wire. It has feature of excellent corrosion resistance ability, glossy appearance, convenient installation, economical and practical. With its high intensity and good toughness, PVC coated could obviously reduce the abrasion during operating.
Currently as the most popular high-class fencing wire, PVC coated razor barbed wire has been applied wildly in ocean engineering, irrigation machines, big excavators, grasslands boundary, military field, prisons, detention houses, government buildings, cottage society fence, and other private buildings.
Standard Specification of Razor Barbed Tape Coil | |||
|---|---|---|---|
Type | Coil Diameter | Loops Amount | Coverage Length |
BTO-10/12/22/18/30 | 20" / 500mm | 102 | 50 feet |
| BTO-10/12/22/18/30 | 24" / 600mm | 86 | 45 feet |
| BTO-10/12/22/18/30 | 27" / 700mm | 72 | 38 feet |
| BTO-10/12/22/18/30 | 31" / 800mm | 64 | 32 feet |
| BTO-10/12/22/18/30 | 38" / 960mm | 52 | 28 feet |
| CBT-65/60 | 38" / 960mm | 33 | 26 feet |
| CBT-65/60 | 20" / 500mm | 41 | 32 feet |
| CBT-65/60 | 27" / 700mm | 41 | 32 feet |
| CBT-65/60 | 38" / 960mm | 53 | 42 feet |
Standard Specification of Barb | |||||
|---|---|---|---|---|---|
Type | Wire dia | Barb thickness | Barb length | Barb width | Barb space |
| BTO-10 | 2.5mm±0.1 | 0.5mm±0.05 | 10mm±1 | 13mm±1 | 26mm±1 |
| BTO-12 | 2.5mm±0.1 | 0.5mm±0.05 | 12mm±1 | 15mm±1 | 26mm±1 |
| BTO-18 | 2.5mm±0.1 | 0.5mm±0.05 | 18mm±1 | 15mm±1 | 33mm±1 |
| BTO-22 | 2.5mm±0.1 | 0.5mm±0.05 | 22mm±1 | 15mm±1 | 34mm±1 |
| BTO-30 | 2.5mm±0.1 | 0.5mm±0.05 | 30mm±1 | 18mm±1 | 45mm±1 |
| CBT-60 | 2.5mm±0.1 | 0.5mm±0.05 | 60mm±2 | 32mm±1 | 100mm±2 |
| CBT-65 | 2.5mm±0.1 | 0.5mm±0.05 | 65mm | ||

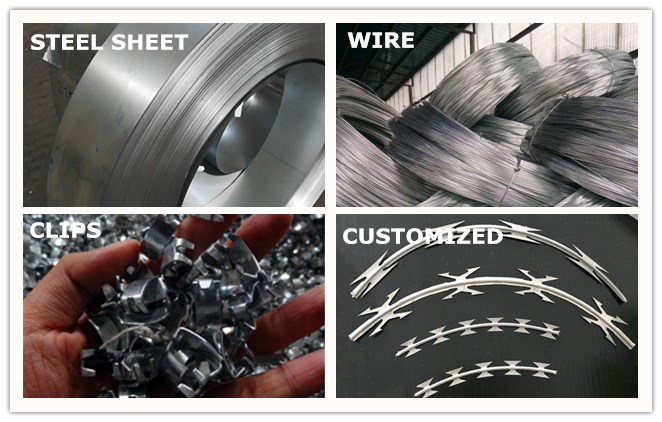

Strict Control of Raw Material
About Us
SUNSI is a competitive manufacturer of metal fence wire and barrier. Our professional products range over razor barbed wire, chain link fence, welded wire mesh and barrier. With a strong technical team and skilled personnel, our products have high reliability and performance. We have built up a loyal clientele in African, Middle East, South Asian and Europe. SUNSI would like to join hands with you to create bilateral value.
