High Quality PVC Coated Double Twisted Barbed Wire BWG12 for Pasturage Boundary
Product Description

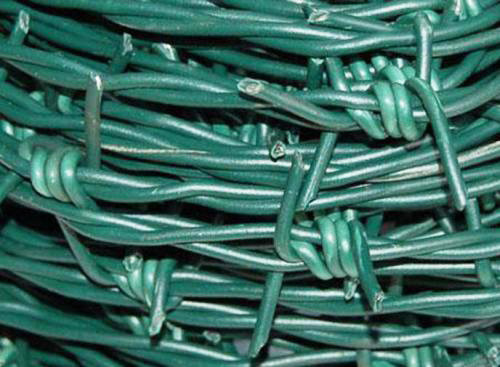

Double strands PVC barbed wire also called Double twist PVC coated barbed wire is made of two strands of plasticizing coating wires with high quality low carbon steel inside. It is processed by automatic screw machine making barbs wind on the two main wires to form a higher strength and more rigid structure. It can be divided into traditional twist and reverse twist according to the method of twining. The PVC barbed wire is suitable for all common fields. It has advantages of anticorrosion, deterrent effect and easy installs, which could be used alone or combined with other fences.
Standard specifications are shown in the tables below, special specification are available on requests.
Standard Specification | ||||
|---|---|---|---|---|
Type | Wire Gauge/BWG | Barb Space | Barb Lenght | |
| Galvanized | 10# x 12# | 3 inch to 6 inch | 0.6 inch to 1.2 inch | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
PVC coated PE | Before coating | After coating | 3 inch to 6 inch | 0.6 inch to 1.2 inch |
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
Note:PVC Coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
| WIRE GAUGE TABLE | ||||
| Gauge No. | S.W.G | B.W.G | BG | BS |
| mm | mm | mm | mm | |
| #0 | 8.229 | 8.636 | 10.069 | 8.255 |
| #1 | 7.620 | 7.620 | 8.971 | 7.348 |
| #2 | 7.010 | 7.214 | 7.993 | 6.543 |
| #3 | 6.401 | 6.579 | 7.122 | 5.827 |
| #4 | 5.893 | 6.045 | 6.350 | 5.189 |
| #5 | 5.558 | 5.448 | 5.652 | 4.621 |
| #6 | 4.877 | 5.156 | 5.032 | 4.115 |
| #7 | 4.470 | 4.572 | 4.481 | 3.665 |
| #8 | 4.061 | 4.171 | 3.988 | 3.264 |
| #9 | 3.658 | 3.759 | 3.551 | 2.096 |
| #10 | 3.251 | 3.404 | 3.175 | 2.588 |
| #11 | 2.946 | 3.048 | 2.827 | 2.305 |
| #12 | 2.642 | 2.769 | 2.517 | 2.053 |
| #13 | 2.337 | 2.413 | 2.240 | 1.828 |
| #14 | 2.032 | 2.108 | 1.994 | 1.628 |
| #15 | 1.829 | 1.829 | 1.775 | 1.450 |
| #16 | 1.626 | 1.651 | 1.588 | 1.291 |
| #17 | 1.422 | 1.473 | 1.412 | 1.150 |
| #18 | 1.219 | 1.245 | 1.257 | 1.024 |
| #19 | 1.016 | 1.067 | 1.118 | 0.912 |
| #20 | 0.914 | 0.889 | 0.996 | 0.812 |

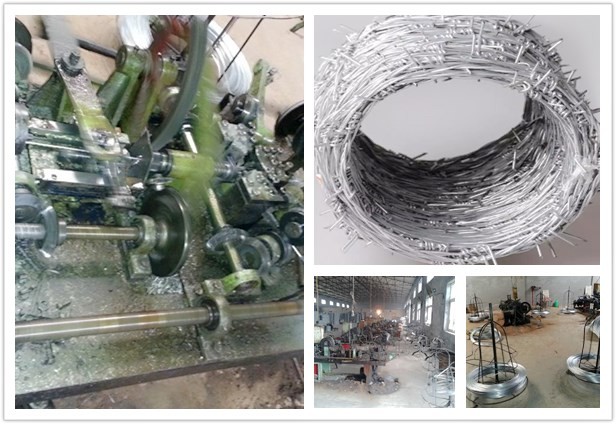

Production and Packing
Company Profile
SUNSI is a competitive manufacturer of metal fence wire and barrier. Our professional products range over razor barbed wire, chain link fence, welded wire mesh and barrier. With a strong technical team and skilled personnel, our products have high reliability and performance. We have built up a loyal clientele in African, Middle East, South Asian and Europe. SUNSI would like to join hands with you to create bilateral value.
